Wiring a bathroom might seem daunting, but with the proper knowledge and tools, it can be a rewarding DIY project. Proper bathroom wiring is crucial not only for safety but also for creating a stylish and functional space.
Whether you’re renovating an existing bathroom or building a new one, understanding how to wire a bathroom is essential. From ensuring compliance with electrical codes to selecting the right tools and materials, we’ve got you covered.
Understanding Bathroom Electrical Requirements
Why Bathroom Wiring Differs
Bathrooms have unique electrical requirements due to the presence of water and moisture. This makes them more susceptible to electrical hazards, such as shock and short circuits. As a result, bathroom wiring must adhere to stricter safety standards than that in other rooms in your home.
Electrical Codes and Regulations
When wiring a bathroom, it’s crucial to follow local electrical codes and regulations. In the United States, the National Electrical Code (NEC) sets the standard for safe electrical installations. For example, the NEC requires the use of Ground Fault Circuit Interrupter (GFCI) outlets in bathrooms to protect against electrical shock.
Power Requirements and Circuits
Bathrooms typically require separate circuits for lighting, outlets, and appliances like exhaust fans or heated towel racks. The power requirements for these circuits can vary depending on the specific devices and fixtures you plan to Install. It’s essential to calculate your bathroom’s power needs accurately to ensure safe and efficient operation.
Hiring a Licensed Electrician
While this guide provides a comprehensive overview of wiring a bathroom, it’s essential to know when to seek professional help. If you’re unsure about any aspect of the process or if local regulations require it, don’t hesitate to hire a licensed electrician. Their expertise can ensure your bathroom’s wiring is safe, compliant, and up to code.
Tools and Materials Needed for Bathroom Wiring
To successfully wire your bathroom, you’ll need a variety of tools and materials. Here’s a list of the essentials:
Tools
- Wire strippers
- Voltage testers
- Circuit breakers
- Screwdrivers
- Pliers
- Drill and bits
Materials
- Wires (typically 12 or 14 gauge)
- Electrical boxes
- Outlets (GFCI)
- Switches
- Light fixtures
- Conduit or cable management systems
When selecting your tools and materials, prioritize quality and safety. Investing in reliable equipment and high-quality materials can help ensure a safe and long-lasting bathroom wiring system.

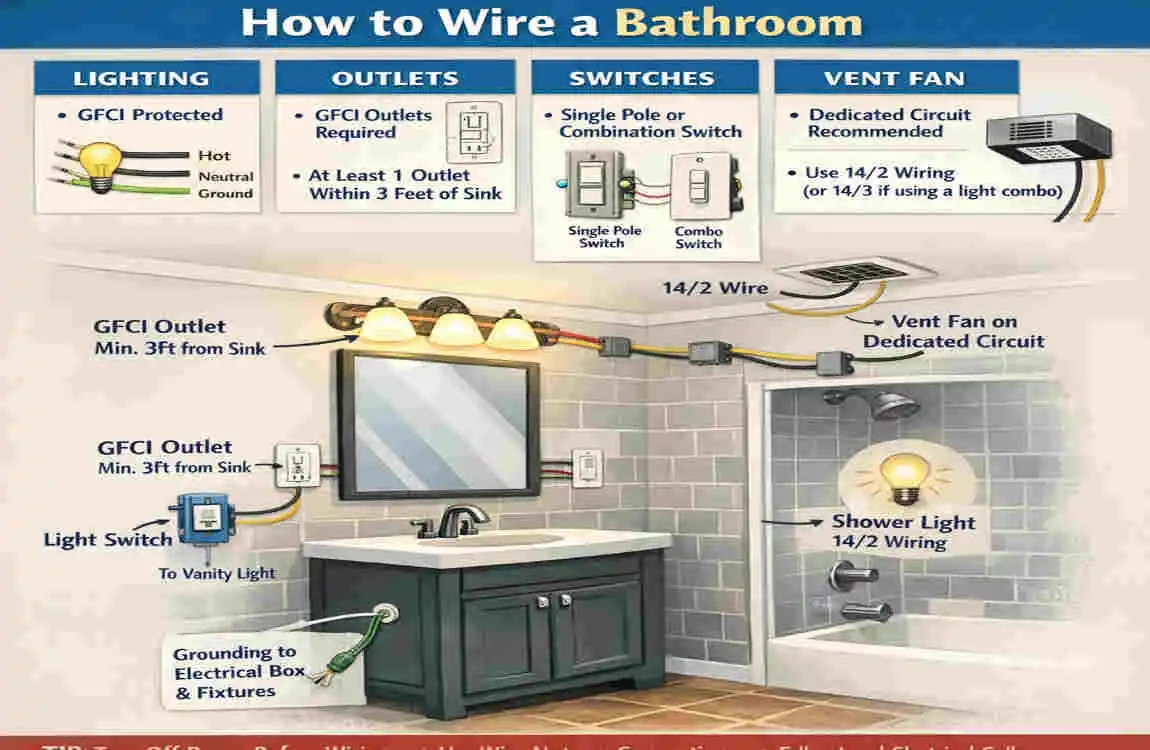

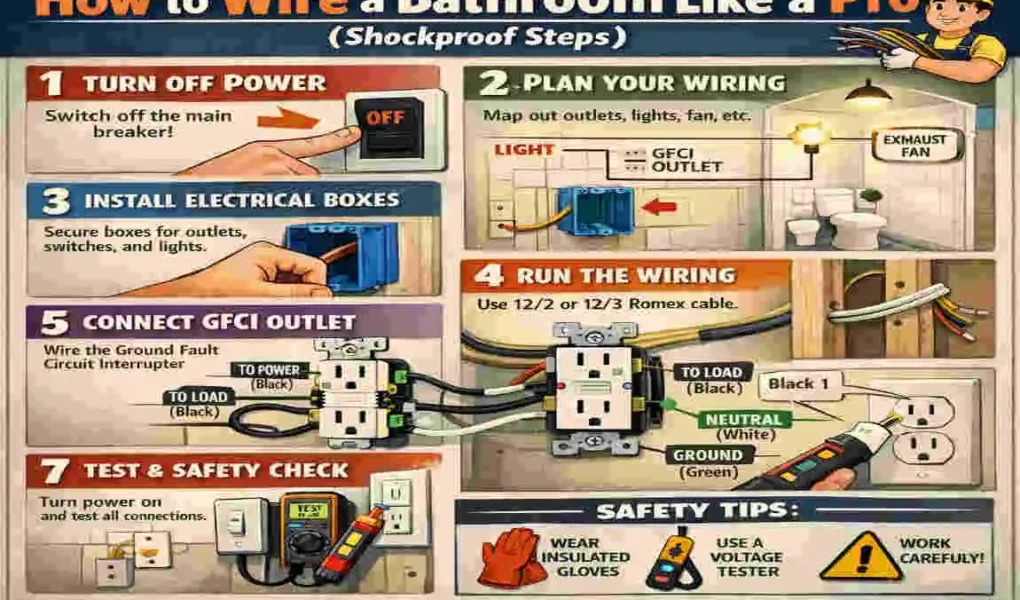

Step-by-Step Guide on How to Wire a Bathroom
Now that you understand the basics of bathroom electrical requirements and have gathered the necessary tools and materials, let’s walk through the wiring process step by step.
Planning the Wiring Layout
Before you start running wires, take the time to plan your bathroom’s electrical layout. Consider the placement of outlets, lights, and switches, balancing functionality and aesthetics. Sketch out your plan and double-check it against local electrical codes to ensure compliance.
Ensuring Code Compliance
As you plan your bathroom’s wiring, make sure to adhere to local electrical codes and regulations. These codes may vary by location, so it’s essential to research and understand the specific requirements for your area. When in doubt, consult with a licensed electrician or local building authority.
Wiring Bathroom Outlets
Bathroom outlets must be GFCI-protected to prevent electrical shock. To wire a GFCI outlet, follow these steps:
- Turn off the power at the main breaker.
- Connect the black (hot) wire to the brass terminal on the GFCI outlet.
- Connect the white (neutral) wire to the silver terminal.
- Connect the bare copper (ground) wire to the green grounding terminal.
- Secure the outlet in the electrical box and attach the cover plate.
Repeat this process for each bathroom outlet, ensuring that all outlets are GFCI-protected and properly grounded.
Wiring Bathroom Lighting
Bathroom lighting typically includes ceiling lights, vanity lights, and, if present, an exhaust fan. To wire these fixtures:
- Run the appropriate gauge wire from the power source to each light fixture location.
- Connect the black wire to the black (hot) wire on the light fixture.
- Connect the white wire to the white (neutral) wire on the light fixture.
- Connect the bare copper wire to the grounding point on the light fixture.
- Secure the light fixture in place and attach any necessary trim or covers.
For vanity lights, you may need to run wire from the switch to the light fixture. Follow the same wiring process, ensuring that all connections are secure and properly insulated.
Connecting the Circuit Breaker and Testing the System
Once you’ve wired all your bathroom outlets and lighting, it’s time to connect the circuit breaker and test the system:
- Turn off the main breaker and locate the appropriate breaker slot for your bathroom circuit.
- Connect the black wire from your bathroom circuit to the breaker terminal.
- Connect the white wire to the neutral bus bar.
- Connect the bare copper wire to the grounding bus bar.
- Secure the breaker in place and turn the main breaker back on.
Now, test each outlet and light fixture to ensure they’re functioning properly. Use a voltage tester to verify that all GFCI outlets are working correctly.
Safety Checks Before Finalizing Installation
Before you consider your bathroom wiring complete, perform a final safety check:
- Verify that all connections are secure and properly insulated.
- Ensure that all GFCI outlets are functioning correctly.
- Check for any exposed wires or damaged insulation.
- Confirm that all light fixtures and outlets are securely mounted.
If you’re satisfied with the safety and functionality of your bathroom wiring, you can proceed with finishing the installation. However, if you have any doubts or concerns, it’s always best to consult with a licensed electrician.

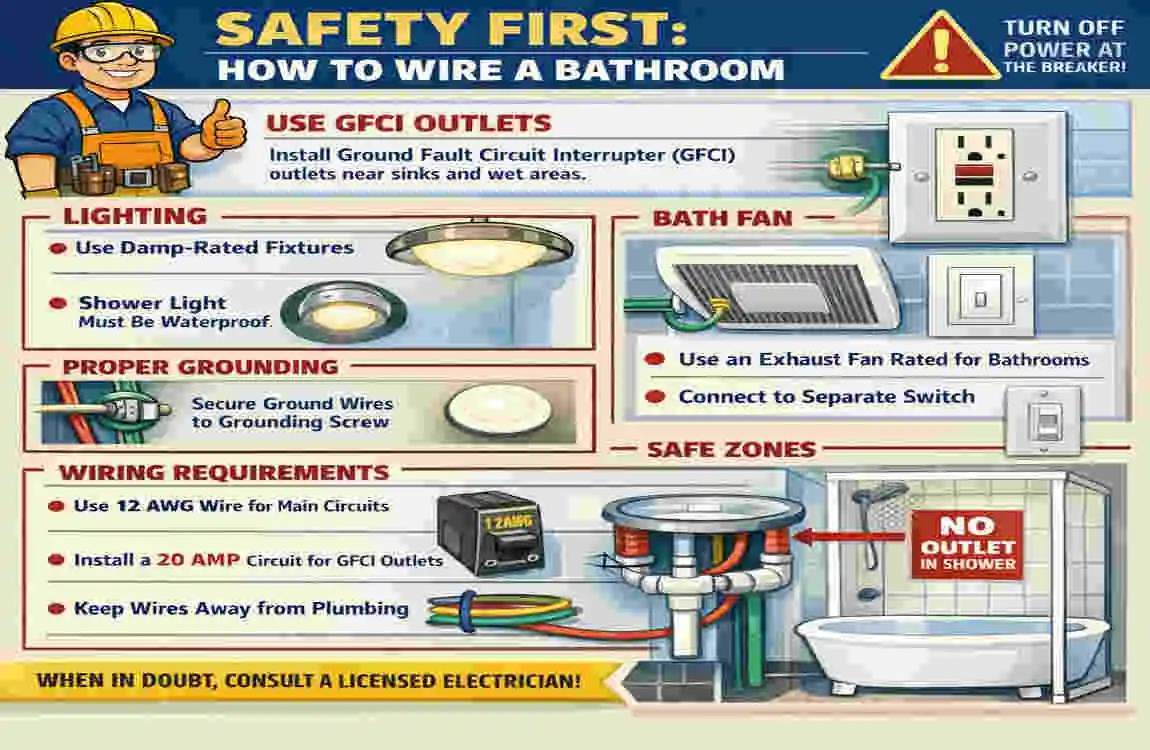

Safety Tips for Bathroom Wiring
Wiring a bathroom comes with its own set of safety considerations. Here are some essential tips to keep in mind:
Turn Off Power at the Main Breaker
Before you begin any electrical work in your bathroom, always turn off the power at the main breaker. This will prevent accidental shocks or short circuits while you’re working.
Use GFCI Outlets
As mentioned earlier, GFCI outlets are a must in bathrooms. These outlets detect ground faults and quickly shut off power to prevent electrical shock. Make sure all your bathroom outlets are GFCI-protected.
Proper Grounding Techniques
Proper grounding is crucial for bathroom safety. Ensure that all outlets, switches, and light fixtures are properly grounded using the bare copper wire. This helps direct any stray electrical currents safely to the ground.
Avoid Water Exposure
Water and electricity don’t mix well. When wiring your bathroom, take extra care to keep wires and connections away from water sources, such as sinks, showers, and toilets. Use waterproof wiring solutions and cable management systems to protect your electrical components.
When to Call a Professional Electrician
While this guide provides a comprehensive overview of wiring a bathroom, there may be situations where it’s best to call a professional electrician. If you’re unsure about any aspect of the process, encounter unexpected challenges, or local regulations require it, don’t hesitate to seek professional help.
Stylish and Modern Bathroom Wiring Ideas
Wiring your bathroom isn’t just about safety and functionality; it’s also an opportunity to add style and modernity to your space. Here are some ideas to consider:
LED Lighting for Energy Efficiency and Style
LED lighting is an excellent choice for bathrooms. Not only are LEDs energy-efficient and long-lasting, but they also come in a variety of colors and styles to suit your bathroom’s aesthetic. Consider installing LED vanity lights, under-cabinet lighting, or even LED strips for a modern look.
Dimmer Switches for Ambiance Control
Dimmer switches let you adjust the brightness of your bathroom lighting, creating a more relaxing, customizable atmosphere. Install dimmer switches for your vanity lights or ceiling lights to set the perfect mood for your morning routine or evening relaxation.
Smart Electrical Devices
Innovative technology has made its way into the bathroom, offering convenient and stylish solutions for your electrical needs. Consider installing motion-sensor lights that turn on automatically when you enter the room, or app-controlled lighting that allows you to adjust brightness and color from your smartphone.
Cable Management and Concealment
Exposed wires and cords can detract from your bathroom’s overall look. Use cable management solutions, such as conduit or cable covers, to keep your wiring neat and hidden. This not only improves the aesthetics of your bathroom but also helps prevent accidental damage to your electrical system.

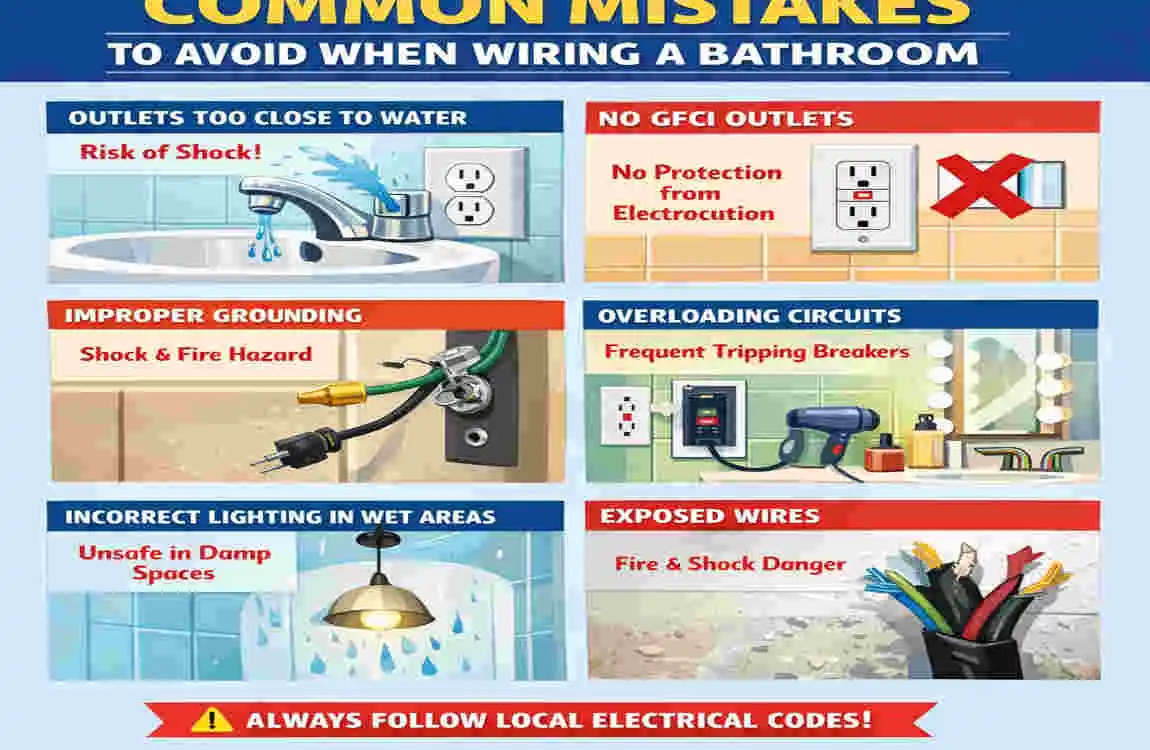

Common Mistakes to Avoid When Wiring a Bathroom
When wiring a bathroom, it’s essential to be aware of common mistakes that can compromise safety and functionality. Here are some pitfalls to avoid:
Ignoring Local Electrical Codes
Failing to follow local electrical codes can result in unsafe wiring and potential legal issues. Always research and adhere to the specific requirements for your area, and consult with a licensed electrician if you’re unsure.
Overloading Circuits
Bathrooms often have multiple electrical devices and appliances, which can overload circuits. Make sure to calculate your bathroom’s power needs accurately and Install separate circuits for lighting, outlets, and high-power appliances like heated towel racks or whirlpool tubs.
Using Incorrect Wire Types or Sizes
Using the wrong type or size of wire can lead to overheating, short circuits, and other electrical hazards. Always use the appropriate gauge wire for your bathroom‘s power requirements, and ensure that all cables are rated for wet locations.
Poor Placement of Outlets and Switches
Improperly placed outlets and switches can be inconvenient and even dangerous. Consider the layout of your bathroom and the placement of mirrors, sinks, and other fixtures when deciding where to Install your electrical components. Ensure that all outlets and switches are easily accessible and safely located away from water sources.
Skipping Safety Inspections
After completing your bathroom wiring, it’s crucial to have it inspected by a qualified professional. Skipping this step can lead to undetected safety issues and potential hazards. Schedule a safety inspection to ensure that your bathroom wiring meets all necessary standards and regulations.
Troubleshooting Electrical Issues in Bathrooms
Even with proper installation and maintenance, electrical issues can sometimes arise in bathrooms. Here’s how to identify and fix common problems:
Tripped Breakers
If a circuit breaker trips frequently in your bathroom, it could indicate an overloaded circuit or a short circuit. Check your bathroom’s electrical load and ensure that you’re not exceeding the circuit’s capacity. If the problem persists, consult with a licensed electrician to identify and fix the underlying issue.
Flickering Lights
Flickering lights in your bathroom can be caused by loose connections, faulty bulbs, or issues with the electrical supply. Start by checking and tightening all connections, and replace any bulbs that appear to be flickering. If the problem continues, it may be necessary to investigate the electrical supply or consult with a professional.
Dead Outlets
If an outlet in your bathroom stops working, first check the GFCI outlet to see if it has been tripped. If resetting the GFCI doesn’t solve the problem, check for loose connections or damaged wiring. If you’re unable to identify and fix the issue, it’s best to call a licensed electrician for assistance.
When to Troubleshoot Yourself vs. Hiring a Professional
While some minor electrical issues can be safely addressed by homeowners, it’s essential to know when to seek professional help. If you’re unsure about the cause of an electrical problem, encounter a potentially dangerous situation, or local regulations require it, always consult a licensed electrician.
Maintenance Tips for Safe and Efficient Bathroom Wiring
To keep your bathroom wiring safe and efficient over time, follow these maintenance tips:
- Regularly inspect your bathroom’s electrical components for signs of wear, damage, or moisture exposure.
- Test your GFCI outlets monthly to ensure they’re functioning correctly.
- Keep your bathroom clean and dry to prevent moisture from damaging your electrical system.
- Avoid overloading outlets or using extension cords as a permanent solution.
- If you notice any unusual smells, sounds, or behavior from your bathroom’s electrical system, investigate the issue promptly and seek professional help if necessary.
Legal and Code Considerations for Bathroom Wiring
When wiring a bathroom, it’s essential to understand and adhere to legal and code requirements. Here’s an overview of what you need to know:
NEC Bathroom Wiring Rules
In the United States, the National Electrical Code (NEC) sets the standard for safe electrical installations, including bathroom wiring. Key NEC requirements for bathrooms include:
- GFCI protection for all outlets within 6 feet of a sink or water source
- At least one GFCI-protected outlet in the bathroom
- Lighting outlets controlled by wall switches
- Proper grounding of all electrical components
Permit Requirements
Depending on your location, you may need to obtain a permit before beginning any electrical work in your bathroom. Check with your local building authority to determine if a license is required and what the specific requirements are for your area.
Inspections and Certifications
After completing your bathroom wiring, it’s crucial to have it inspected by a qualified professional. This inspection ensures that your wiring meets all necessary safety standards and codes. In some areas, you may need to obtain a certificate of compliance or occupancy before using your newly wired bathroom.
