It’s a sunny Saturday, and a determined DIY enthusiast—let’s call him Dave—decides it is finally time to tackle that aging roof on his detached garage. He heads to the local lumber yard, wallet in hand, and sees the price difference between 3/8 plywood and the standard 1/2-inch sheets. The 3/8-inch stack is significantly cheaper and much lighter to carry. Dave thinks, “It’s just a fraction of an inch, right? What could go wrong?”
The short answer is: Rarely, and only under very strict conditions. While it isn’t technically impossible in every single scenario, using 3/8 plywood for roof sheathing is generally ill-advised for residential structures, according to data derived from the International Residential Code (IRC), a significant portion of roof failures—some estimates suggest up to 80% in older DIY projects—are tied directly to inadequate sheathing thickness or improper fastening.

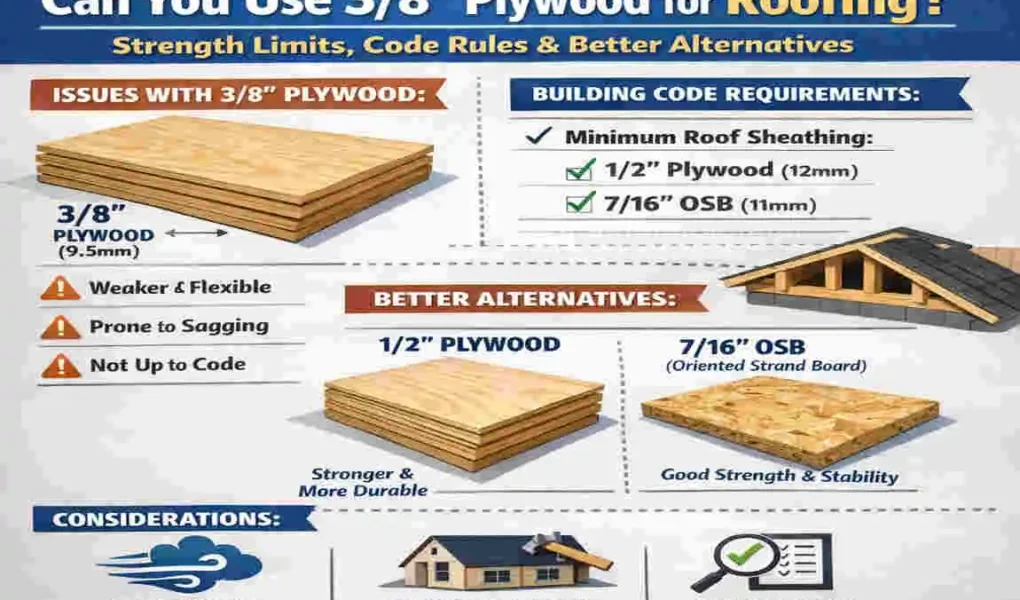

Roofing Sheathing Basics: What Makes Plywood Suitable?
Before we can decide if 3/8 plywood is “good enough,” we need to understand what roof sheathing actually does. It is not just a flat surface to nail shingles onto. Sheathing is the structural skin of your roof.
The Role of Sheathing
Think of your roof framing (the rafters or trusses) as the skeleton. The sheathing is the muscle and skin that ties everything together. It serves three critical functions:
- Support: It holds up the weight of the roofing material (shingles, metal, tile) and the live loads (snow, workers walking on it).
- Protection: It acts as the final barrier between your underlayment and the attic, helping to prevent leaks.
- Lateral Strength: It locks the rafters together, preventing the roof from racking or twisting during high winds.
Understanding Plywood Grades
When you walk into a hardware store, you will see stamps on the wood like “CDX.” This is crucial for roofing.
- C and D: These refer to the quality of the veneer. “C” is the face you see (which might have some knots filled in), and “D” is the back side (which can have knotholes).
- X: This stands for “Exposure 1,” meaning the glue used is waterproof and can withstand temporary exposure to rain during construction.
The Span Rating Factor
This is the most important number on the board. You will often see numbers like 24/16 stamped on the sheet.
- The first number (24) is the maximum span in inches allowed for roof supports.
- The second number (16) is the maximum span for subflooring.
Thinner plywood, like 3/8 inch, usually has a lower span rating compared to 1/2 inch or 5/8 inch. If your rafters are spaced 24 inches apart (which is very common in modern homes), a sheet of plywood rated for only a 16-inch span will sag dangerously.
Thickness and Load Bearing
To visualize the difference, examine how thickness correlates with overall rigidity.
Plywood Thickness, Typical Span Rating, Best Application
1/4 Inch N/A for Roofs , Cabinet backing, crafts
3/8 Inch 16/0 or 20/0 Wall sheathing, very specific low-load roofs
1/2 Inch 24/16 or 32/16 Standard residential roofing
5/8 Inch 40/20 Heavy snow loads, slate/tile roofs
3/4 Inch 48/24 Heavy-duty structural needs
As we transition into the specifics of 3/8 plywood, keep in mind that “possible” does not mean “optimal.” The thinner the wood, the less margin for error you have.
3/8 Plywood Strength Limits: Can It Hold Up?
Let’s get into the nitty-gritty of why 3/8 plywood struggles. It isn’t just a feeling; it is physics. Roofing materials are subjected to immense stress, and 3/8 plywood is essentially the lightweight contender in a heavyweight fight.
Material Specifications
A standard sheet of 3/8 plywood weighs roughly 1.2 lbs per square foot. It is incredibly light, making it easy to lift a ladder. However, that lack of mass translates to a lack of stiffness. Stiffness is the material’s resistance to bending under load.
The Mathematics of Deflection
Engineers use a specific formula to calculate how much a beam or panel will bend (deflect) under a specific load. The formula for a uniformly distributed load looks like this:
$$ \text{Deflection} = \frac{5wL^4}{384EI} $$
Don’t let the math scare you! Here is what those letters mean in plain English:
- w (Load): The weight of snow or shingles.
- L (Length): The distance between your rafters (the span). Notice that $L$ is to the power of 4. This means if you double the span, the bending increases by 16 times!
- E (Modulus of Elasticity): How “stretchy” the wood fiber is.
- I (Moment of Inertia): This is directly related to the board’s thickness.
Because “I” is in the denominator (the bottom of the fraction), a smaller thickness results in a massive increase in deflection. According to APA (The Engineered Wood Association) data, a 3/8-inch panel will deflect (bend) roughly two times more than a 1/2-inch panel over the same 24-inch span.
Real-World Stress Tests
- Snow Loads: In many northern climates, roofs must support 30 to 50 pounds per square foot (psf) of snow. 3/8 plywood creates a “trampoline effect” under this weight.
- Wind Uplift: During a storm, wind tries to suck the roof off the house (uplift). Thinner plywood has less “meat” for the nails to grab, so the fasteners can tear right through the wood fibers at 90-120 mph wind speeds.
- Dead Loads: Even without snow, the roof must support the shingles. Over time, gravity pulls on 3/8 plywood, causing it to sag between rafters permanently.
The Pros and Cons of 3/8 Plywood
Pros:
- Cost: It is currently $10-$15 cheaper per sheet than thicker options.
- Weight: Very easy to handle for a solo DIYer.
Cons:
- Sagging: It looks unsightly and can damage shingles.
- Punctures: If a roofer drops a hammer or steps heavily between rafters, their foot could go right through.
- Moisture Sensitivity: Thinner wood warps faster when exposed to humidity.
The Verdict: For any rafter spacing greater than 16 inches, 3/8 plywood is physically insufficient to maintain a flat, safe roof deck.
Building Code Rules: Is 3/8 Plywood Roofing Legal?
This is where the rubber meets the road. You might be willing to take a risk, but your local building inspector is not. Using materials that violate code can lead to fines, forced roof removal, and voided insurance policies.
The International Residential Code (IRC)
Most local building codes in the US are based on the International Residential Code (IRC) or the International Building Code (IBC).
Specifically, we look at Table R503.2.1.1 in the IRC. This table outlines the minimum thickness for roof sheathing.
- The Loophole: The code allows 3/8-inch wood structural panels, BUT there is a major catch.
- The Restriction: It is typically only allowed if the rafters are spaced at 16 inches on center (or less).
- The 24-Inch Problem: If your rafters are spaced at 24 inches (the industry standard for modern trusses), 3/8 plywood is almost universally prohibited as a primary sheathing material because it cannot support the required live loads without excessive bending.
Regional Variations Matter
Building codes are not static; they change based on where you live.
- High-Wind Zones (Florida, Coastal Areas): The IBC Chapter 16 dictates strict uplift requirements. In these areas, 3/8 plywood is often banned regardless of rafter spacing because it cannot hold nails securely enough during a hurricane.
- Heavy Snow Regions (New England, Rockies): ASCE 7 standards for snow loads often push the minimum requirement to 5/8 inch to prevent collapse.
- Seismic Zones: In earthquake-prone areas, the roof acts as a diaphragm to keep walls steady. Thicker sheathing provides better shear strength.
Installation Mandates
Even if your local code allows 3/8 plywood on 16-inch rafters, they will likely require:
- H-Clips: Metal clips placed between sheets to support the edges.
- Specific Nails: Usually 8d common nails with very specific spacing.
- Glue-Nailing: Some inspectors may demand adhesive to increase stiffness.
The “Grandfather” Clause vs. New Builds
If you are repairing a small patch on an existing roof that was originally built with 3/8-inch plywood (common in the 1970s), code may allow you to match the existing material for the repair. However, if you are stripping the entire roof (a “re-roof”), you are generally required to bring the structure up to current code, which likely means upgrading to 1/2-inch or thicker.
Pro Tip: Never guess. Use the ICC Code Finder tool online or call your local building department before buying materials. If you install a roof that violates code, your homeowner’s insurance can deny any future claim for water damage or storm damage.
Common Risks and Failures with 3/8 Plywood Roofing
What actually happens when you ignore the warnings and install undersized sheathing? The consequences usually aren’t immediate, but they are inevitable.
Structural Sagging and “Oil Canning”
The most common issue is aesthetic, but it signals a structural problem. As the plywood cycles through hot summers and cold winters, it begins to sag between the rafters. This creates a wavy appearance known as “oil canning.”
- Why it matters: It isn’t just ugly. The dips allow water to pool slightly, which stresses the shingles. Asphalt shingles are designed to lie flat; when they bend into a dip, they can crack, leading to premature granule loss.
Ice Dams and Leaks
In colder climates, sagging sheathing creates pockets where melting snow can accumulate. This exacerbates ice dams. As the water sits in the dip, it backs up under the shingles, bypassing the underlayment and rotting the wood from the top down. Because 3/8 plywood is so thin, it rots through much faster than thicker stock.
Delamination in Humidity
Plywood is made of layers of wood veneer glued together. Thinner plywood has fewer layers (plies). In high-humidity environments—imagine the monsoon season in Lahore or the humid summers of the American South—the wood absorbs moisture.
- The Result: The layers begin to separate (delaminate). Once the glue fails, the structural integrity is gone. 3/8 plywood is notorious for warping and buckling under these conditions much faster than 1/2- or 5/8-inch options.
Safety Hazards
This is a risk often overlooked. Roofers (or you) have to walk on the roof to install the shingles.
- The Danger: If a 200-pound person steps firmly in the center of a 24-inch span covered only by 3/8 plywood, there is a very real risk of the wood snapping. This can lead to severe injury and create a difficult-to-patch hole in the roof.
Better Alternatives to 3/8 Plywood for Roofing
If 3/8 plywood is the “problem child” of roofing materials, what should you be using? The industry has moved toward materials that offer a better balance of cost, strength, and durability.
The Standard: 1/2 Inch (15/32) CDX Plywood
This is the residential standard for a reason. Rated typically at 32/16, it can easily span 24-inch rafters. It offers a solid feel underfoot and holds roofing nails securely. It resists sagging significantly better than 3/8 inch and costs only a few dollars more per sheet.
The Heavy Lifter: 5/8 Inch or 3/4 Inch Plywood
If you are building a custom home, have slate or clay tile roofs, or live in a heavy snow zone, upgrade to 5/8-inch.
- Benefit: The roof feels like a concrete floor. It will never sag.
- Drawback: It is heavy and more expensive.
The Budget King: OSB (Oriented Strand Board)
OSB is made from wood strands that are glued and compressed. It creates a very consistent panel with no knotholes.
- 7/16 OSB: This is the direct competitor to 1/2 inch plywood. It is often structurally rated the same (24/16) but is usually cheaper. Most modern tract homes use OSB.
- Pros: Cost-effective, consistent size, green/sustainable (uses fast-growing trees).
- Cons: Edges swell when wet and stay wet.
Advanced Systems: ZIP System and AdvanceTech
For those who want the best, products like the ZIP System integrate the water barrier right onto the panel. These are usually OSB-based but treated with advanced resins for incredible moisture resistance and air sealing.
Material Comparison Table
Here is a quick snapshot to help you decide what to buy:
Material Thickness Est. Cost/Sheet Span Rating Best Used For
3/8 Plywood 3/8″ ~$12 – $15 16/0 Sheds, very small repairs
1/2 Plywood 15/32″ ~$18 – $22 32/16 Most Standard Homes
7/16 OSB 7/16″ ~$14 – $18 24/16 Budget-Friendly Re-roofs
5/8 Plywood 19/32″ ~$25 – $30 40/20 High Wind/Snow Zones
ZIP System 7/16″ ~$35+ 24/16 Premium/High-Efficiency
Eco-Friendly Note: If sustainability is a priority, look for FSC-certified plywood or OSB, which ensures the wood comes from responsibly managed forests.

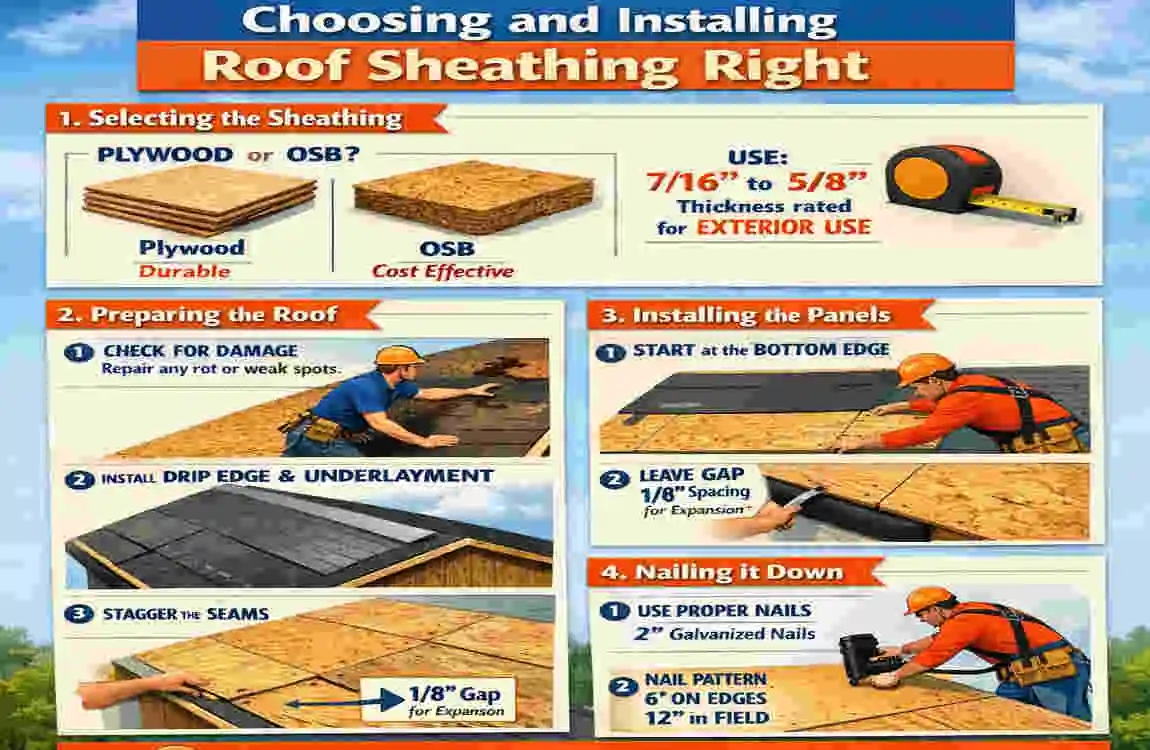

Step-by-Step: Choosing and Installing Roof Sheathing Right
Once you have selected the right material (hopefully not 3/8 plywood for your main house!), installation is key. Even the thickest plywood will fail if installed poorly.
Calculate Your Loads
Before you buy, measure your rafter spacing.
- Is it 16 inches? You have more flexibility.
- Is it 24 inches? You must use 1/2-inch (or 7/16-inch OSB) minimum.
Prepare the Surface
Ensure your rafters are straight and level. If one rafter is higher than the others, planing it down will prevent a hump in the roof.
The Gap Rule (Expansion)
Wood expands and contracts. You must leave a 1/8-inch gap between all sheets of plywood or OSB.
- Tip: Use a 10-penny nail as a spacer between sheets while you nail them down. If you jam them tight, the roof will buckle when it rains.
Use H-Clips
These small metal clips fit between the panels halfway between the rafters. They lock together at the edges, allowing them to share the load. This effectively stiffens the joint and is often required by code for 24-inch spans.
Nailing Pattern
This is where DIYers often fail. You cannot just throw nails randomly.
- Edges: Nail every 6 inches along the edges of the sheet (where it meets the next sheet).
- Field: Nail every 12 inches in the center of the sheet (the “field”).
- Fastener: Use 8d common nails (or ring-shank nails for better holding power).
The Inspection
Before covering it with felt or synthetic underlayment, check for “shiners” (nails that missed the rafter). Pull them and re-nail. A shiner is a guaranteed leak path later on.
Cost Analysis and ROI: Is 3/8 Plywood Worth the Savings?
Let’s do the math on a typical 2,000-square-foot roof.
- You need roughly 65 sheets of plywood.
- Price of 3/8 Plywood: $12/sheet x 65 = $780
- Price of 1/2 Plywood: $18/sheet x 65 = $1,170
- Price of 7/16 OSB: $15/sheet x 65 = $975
The Difference: By choosing 3/8-inch plywood instead of the standard 1/2-inch, you save about $390.
Now, consider the repair costs. If the roof sags and needs to be replaced in 7 years instead of 25, you are looking at paying for:
- Dumpster fees for tear-off.
- Labor for removal.
- New shingles (thousands of dollars).
- New sheathing.
The Reality: The $390 savings represents less than 3% of the total cost of a professional roof replacement (which often averages $10,000 – $15,000). Risking structural failure to save 3% is, frankly, a terrible Return on Investment (ROI). Furthermore, when you eventually sell your home, a wavy roof will likely be flagged by the home inspector, forcing you to lower your asking price or pay for repairs before closing.
FAQs
Can you use 3/8 plywood for roofing on a shed?
Yes. Sheds typically have smaller spans and don’t house people or expensive insulation. If the rafters are 16 inches apart (or less), 3/8 plywood is acceptable for a garden shed, though 1/2 inch is still longer-lasting.
3/8 vs 1/2 plywood roofing—which wins?
1/2 inch wins, hands down. It is stiffer, holds nails better, meets almost all building codes for 24-inch spans, and resists warping much better than 3/8 inch. The cost difference is negligible compared to the performance benefits.
Does roof pitch affect plywood thickness?
Yes. Steeper roofs shed snow and water faster, reducing the load duration. Flat or low-slope roofs hold weight longer and are more prone to pooling water. Therefore, low-slope roofs often require thicker sheathing (5/8 or 3/4 inch) to prevent sagging and pooling.
Is OSB better than plywood for roofing?
It depends on your goal. OSB is generally cheaper and has very consistent strength, making it the most popular choice for modern builders. Plywood is lighter and handles getting wet (and drying out) slightly better than OSB. For most homeowners, 7/16 OSB is a perfectly acceptable, code-compliant alternative to plywood.
Can I put new sheathing over old sheathing?
Technically, yes, but it is risky. If the old 3/8 sheathing is rotting, covering it up hides the rot. Most pros recommend a “tear-off” to inspect the rafters and ensure the new sheathing is fastened directly to the structural wood, not just nailed into old, soft plywood.
